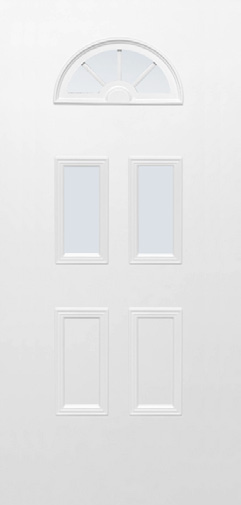

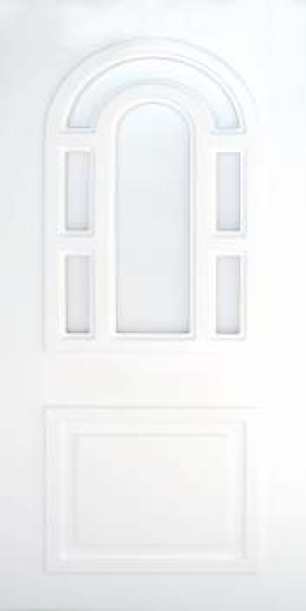

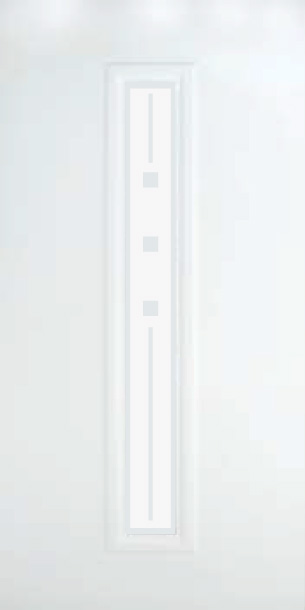

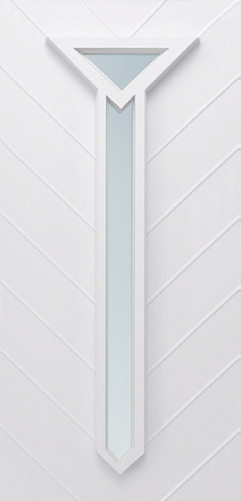

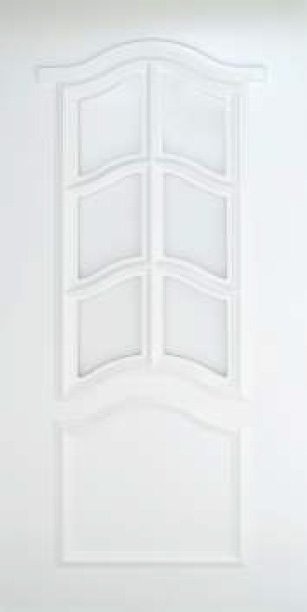

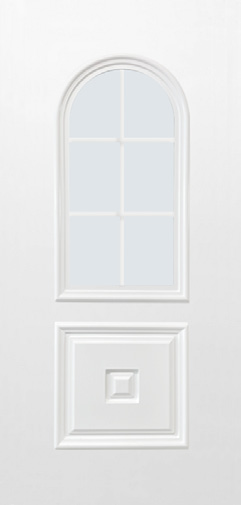

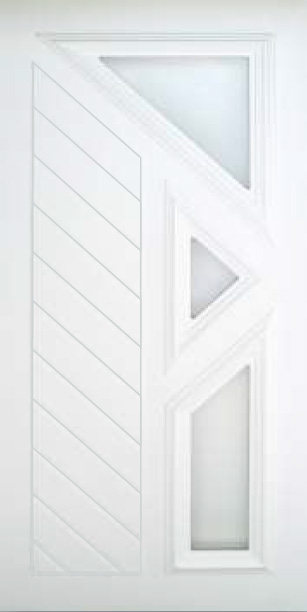

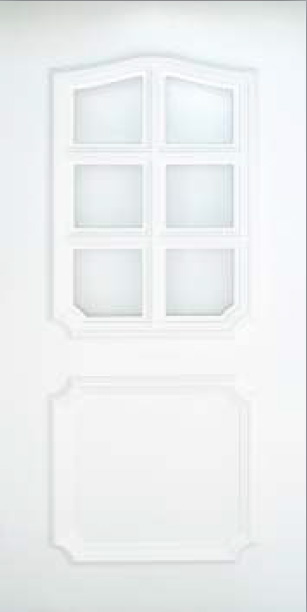

Thermo Door Models

Color Options

Mahogany, White and Oak colors are standard colors for propanel doors. It can also be made in special colors according to your request. Mahogany, Oak, White

Technical Information

About Door Panels

Plate
  • Waterproof.
  • Excellent shaping by thermoforming.
  • Resistant to chemicals and corrosion.
  • High sound insulation.
  • Low water absorption.
  • High impact resistance.
  • High resistance to UV and weather conditions.
  • No chemical damage even in the long term.
  • Environmentally friendly.
  • Fire resistant, does not produce flame.

Internal Filling Materials

EPS
EPS is used as an internal filling material produced by inflating polystyrene particles and shaping them with a mold system. EPS has high thermal insulation and impact resistance.

XPS:
XPS is produced by extrusion of polystyrene raw material. It has a closed porous cell structure, does not absorb water, has high compressive strength and high thermal insulation.
Glass
In our 24 mm thick panels, 4+12+4 transparent glass and double face tempered frosted glass are used as standard. Orange type frosted glass is used in standard models. Other designs can be produced upon request.

Sandwich Panel Dimensions

Panel Dimensions Panel Area Plate Thickness Insulation Thickness Total Panel Thickness
mm m2 mm mm mm
1500x3000 4,5 1 18 20
1200x3000 3,6 1 18 20
1500x3000 4,5 1,5 21 24
1200x3000 3,6 1,5 21 24

Sandwich Panel

Propanel offers you customized solutions for decorating spaces, spaces requiring thermal insulation, all wet surfaces, etc. Flexible body, long life against UV rays, economical and lightweight, easy to clean and install.

It is available in all kinds of places such as PVC windows and doors, paneling, wall cladding, medical applications, cold storage, partition walls, prefabricated buildings.
  • CE
  • İFT
  • ikbim
  • ISO 10002:2018
  • ISO 14001:2015
  • ISO 27001:2022
  • ISO 45001:2018
  • ISO 50001:2018
  • ISO 9001:2015
  • Pb
  • RoHS
